Overview：

Burner nozzle control unit HX258 use for control the auto igniting and monitoring, shut down protect function, interlock with ignition transformer solenoid valve and flame monitoring unit.

1. Using ionization flame monitor.

2. Two electrode, one use for igniting the other use for flame monitoring

3. Compatible for longer flame monitoring wire.

4. The current adjustable for flame monitoring

5. Two mode:If have flame bug could shut down and reigniting or interlock and alarming.(Alterable)

6. Have output for ‘normal’and ‘bug’.

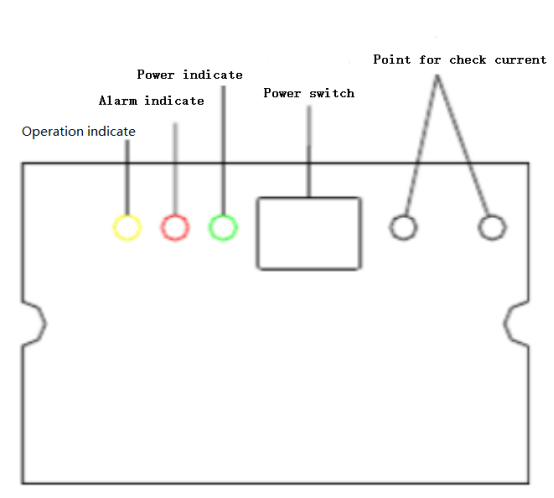

Control panel illustrate：

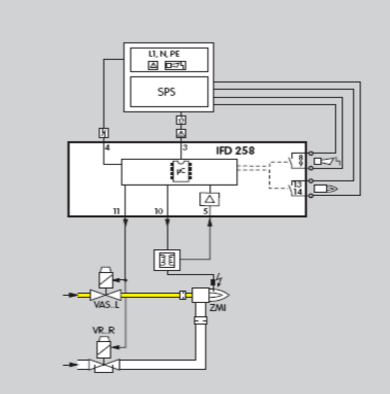

Support burner blower：

Control type: open and close

Open the air valve then open gas valve. Two electrode,one use for igniting the other use for flame monitoring.
